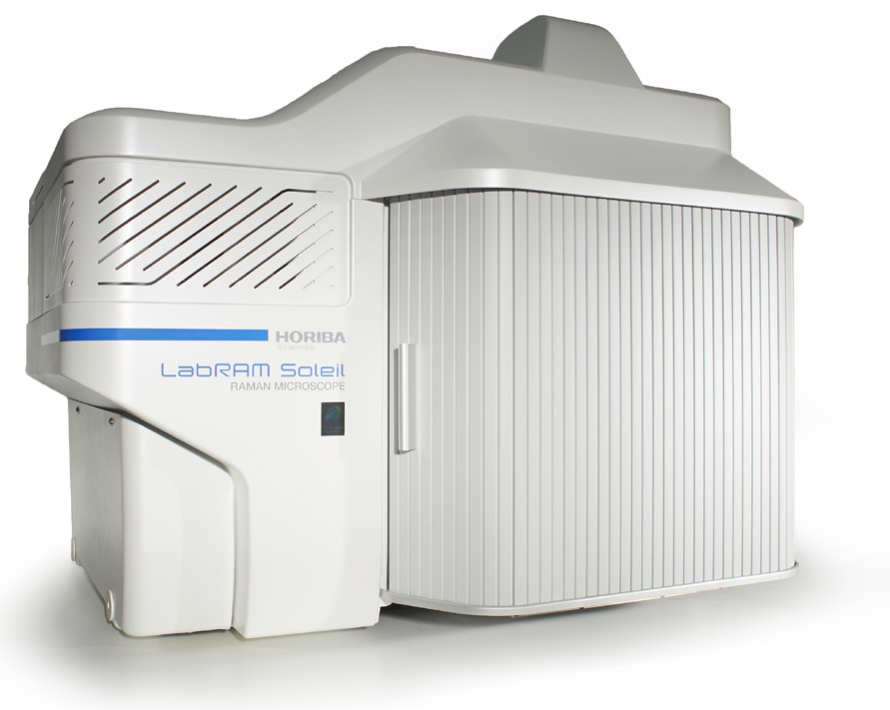

LabRAM Soleil Raman Microscope, Horiba

Raman spectroscopy

The Horiba LabRAM Soleil Raman Microscope is a confocal Raman microscope used for spectral imaging and analysis. It combines Raman spectroscopy with a microscope to provide high-resolution imaging and analysis of samples at the micron and sub-micron scale.

The LabRAM Soleil Raman Microscope uses a laser to excite a sample and measures the resulting Raman scattering to provide information about the sample's molecular composition and structure. Typically, a sample is illuminated with a laser beam. Electromagnetic radiation from the illuminated spot is collected with a lens and sent through a monochromator. Elastic scattered radiation at the wavelength corresponding to the laser line (Rayleigh scattering) is filtered out by a filter, while the rest of the collected light is dispersed onto a detector. It can be used to analyze a wide range of materials:

  • Biological samples
  • (Multiplayer) Polymers
  • Nanomaterials
  • 2D materials
  • Confocal 3D imaging of an inclusion.
Raman spectroscopy



Instrument features

  • Automation
  • Ultrafast imaging
  • Intuitive software to simplify workflows
  • Great variety of optical viewing modes
    • Reflected (episcopic) or transmitted (diascopic) illumination
    • Brightfield/dark-field, phase contrast
    • ViewSharpTM 3D topography
    • NaviSharpTM 3D
  • Great variety of hyperspectral imaging features
    • XYZ 3D confocal image, Zprofile (single-point or plane by plane with QScanTM option)
    • Low frequency (30 cm1) Raman Scattering
    • Photoluminescence (PL), electroluminescence, photocurrent
  • A modular and flexible optical microscope

Intuitive software – LabSpec 6

  • EasyImage – The app that simplifies your workflow
    1. Focus: Targeting and focus on point XYZ
    2. Optimization: Adjustment of image parameters (contrast, etc.)
    3. Characterization: Identification and chemical analysis
    4. Images and interpretation: 3D Surface and volume
    5. Reports: Infinite customization features
  • SmartSamplingTM: Map up to 100 times faster than conventional systems
    • The perfect alignment of the laser optical path and its two positionsensitive detectors (PSD)The tight calibration of the video image with respect to the laser’s position

Access

The instrument is available for ANU researchers and must only be used by trained and authorized operators in accordance with proper safety procedures. It is also available as a fee-for-service for external researchers and industry.

  • Contact lab manager to discuss options for training (DIY) or service data acquisition.
  • Prerequisites for DIY users: Completion of ANU Pulse Online Training Module Laser Safety and WHS induction.
